Concealed hinge 70-1-3639
zinc-coated steel125°door

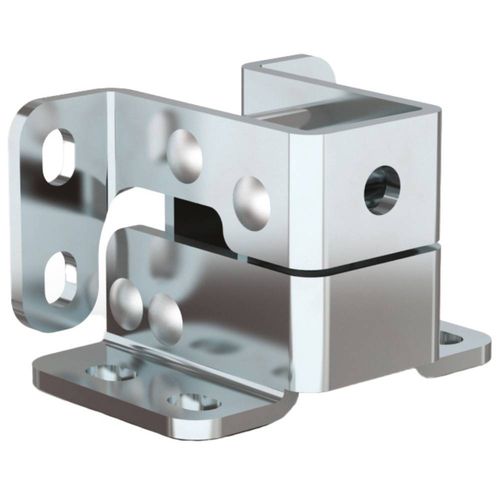

Concealed hinge - 70-1-3639 - PINET INDUSTRIE - zinc-coated steel / 125° / door
Concealed hinge - 70-1-3639 - PINET INDUSTRIE - zinc-coated steel / 125° / door
Add to favorites
Compare this product

Characteristics

Type
concealed
Material
zinc-coated steel
Opening angle
125°
Applications
door
Other characteristics
with tie rods
Length

44 mm
(1.732 in)

Width

29 mm
(1.142 in)

Thickness

32 mm
(1.26 in)

Description

Concealed hinges - 125° opening Links in aluminium. Pins in 430 stainless steel for 70-1-3639. Pins in 304 Cu stainless steel for 70-1-3640. Mounting features: - For nested doors or surface mounted doors. - LH or RH options. - For horizontal or vertical applications. Opening angle differs according to door thickness: - 2 mm thickness: opening angle of 125°. - 8 mm thickness: opening angle of 110°. - 13 mm thickness: opening angle of 100°. Please ask us for bespoke solutions. Produced mainly in stainless steel, for a complete description of the materials contact us.
