Desiccant dryer HR | HRM

continuousfor processing applicationsmeasuring

Overview

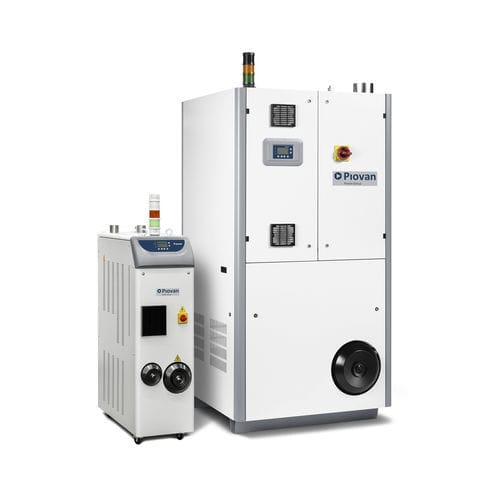

Honeycomb desiccant dryer designed for small and medium productions to deliver a stable dew point and a clean drying process through honeycomb desiccant rotor technology.

Product type & model
Honeycomb desiccant dryer — HR | HRM. HRM models feature a compact layout with the drying hopper integrated on the same mobile frame.

Capacity
Process air flow: 50 to 450 m3/h. Hopper capacities: 100 to 800 dm3 (depending on configuration).

Main benefits

• Minimal energy consumption with constant dew point
• Compact footprint for space-constrained production lines
• Zero dust emission for a clean drying process

Design & flexibility

• Operates with single or multiple hoppers (PTU options)
• Can be installed beside the process machine, on the process machine or on a mobile frame
• HRM versions: integrated drying hopper on the same mobile frame to reduce footprint

Components & observations

• Honeycomb rotor with internal glass-fiber support structure and absorbent material (aluminium silicate or zeolite molecular sieves depending on variant)
• Rotor drive: AC motor with reinforced belt for continuous drying, regeneration and cooling
• Continuous regeneration process with closed-loop cooling phase to maintain performance

Technical specifications

• Technology: honeycomb desiccant rotor
• Process air flow range: 50–450 m3/h
• Absorbent: aluminium silicate or zeolite molecular sieves (variant dependent)
• Rotor support: internal glass-fiber structure
• Regeneration: continuous regeneration with closed-loop cooling
• Dust control: zero dust emission
• Installation options: beside process machine, on the process machine or on a mobile frame
• Hopper configuration: single or multiple hoppers; HRM models with integrated hopper
• Control: microprocessor with parameter display and automatic safety temperature adjustment
• Energy management: Intelligent Energy Supervisor (IES) and Intelligent Material Drying available for optimized consumption
