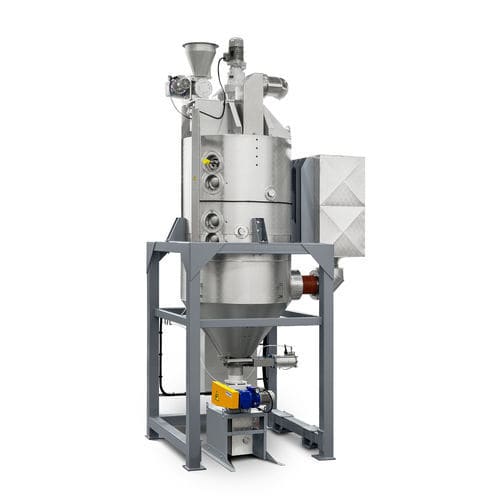

Plastic crystallizer CR

Overview
CR crystalliser for polymer crystallisation prior to drying and downstream processing. Capacity range: 150 to 4,000 dm3.

• Suitable for granules, flakes and regrind materials
• High-efficiency planetary gears driving a low-speed vertical paddle shaft
• Homogeneous agitation ensuring optimal material flow

Description
The CR is designed to exceed the material glass transition temperature and to deliver uniform crystallisation, improving the subsequent drying phase and flowability. Crystallising hoppers use high-efficiency planetary reductions to maintain low rotation speed of the vertical paddle shaft, minimising dust and friction. Paddle groups are connected by screw joints for simplified maintenance and single-paddle replacement. Process control is provided by a complete set of temperature probes and level sensors. Access to the interior is facilitated by a large hinged insulated door and, depending on size, a removable cone. The CR runs both flakes and granules.

Features

• Optional upper and lower rotary valves for controlled feeding and discharge
• Inspection door with insulation and anodised aluminium external covering for cleaning and maintenance
• Low-speed rotating paddle shaft to keep material moving with minimal dust generation

Technical specifications

• Volume range: 150–4,000 dm3
• Material compatibility: granules, flakes and regrind
• Drive: high-efficiency planetary motor gears
• Paddle shaft: vertical, low rotation speed
• Paddle assembly: screw connections between groups for easy maintenance
• Process control: temperature probes and level sensors (complete set)
• Access: large hinged insulated door; removable cone depending on size
• Options: upper and lower rotary valves for feeding/discharge
• Inspection door covering: anodised aluminium with insulation layer
• Operational flexibility: suitable for both flakes and granules
