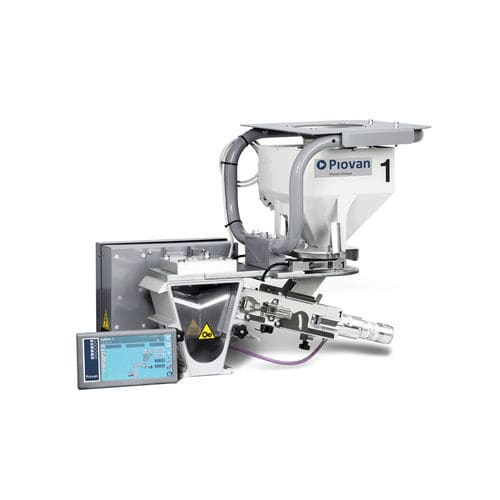

Polymer dosing dispenser Lybra LG - LGR

gravimetricloss-in-weightscrew

Product overview
Lybra LG is a continuous loss-in-weight gravimetric feeder designed for precise dosing of additives into a virgin polymer stream. The cooled variant is marketed as LGR and is suitable for low-melting additives. Capacity range: 0.21–190 kg/h.

Key features

• Capacity: 0.21–190 kg/h
• High accuracy and repeatability via proprietary loss-in-weight control
• Dosing screw options: single, dual or triple flight configurations
• Control: microprocessor with 7" touch screen and Ethernet connectivity
• Water-cooled station available (LGR) for low melting additives

Functional description
The dosing screw (single/dual/triple) provides accurate and repeatable additive feed. An intuitive graphical user interface displays set and actual values, instantaneous production and allows access to all unit functions. A central static mixer inserts additives into the middle of the virgin column for homogeneous blending. The angled dosing station prevents overfeeding, while a dual load-cell arrangement supports only the residence hopper. A separate support bracket isolates the hopper loader from the feeding assembly to increase throughput and reduce wear.

Installation & options

• Local 7" touch screen can be mounted remotely or on the control housing
• Station can be combined with a central hopper to handle regrind or flakes and increase throughput
• Water-cooled LGR version for safe dosing of low melting additives

Technical specifications

• Model variants: Lybra LG (standard) and LGR (cooled)
• Capacity range: 0.21–190 kg/h
• Dosing screw: single, dual or triple flight screws
• Control: microprocessor, 7" touch screen, Ethernet
• Industry 4.0: Winfactory 4.0 ready, integrable in supervision systems
• Mixer: central static mixer
• Dosing station: angled design to prevent overfeeding
• Weighing: dual load-cell design supporting only residence hopper
• Support: separate bracket isolating hopper loader
• Suitable for: low melting additives (water-cooled option)
