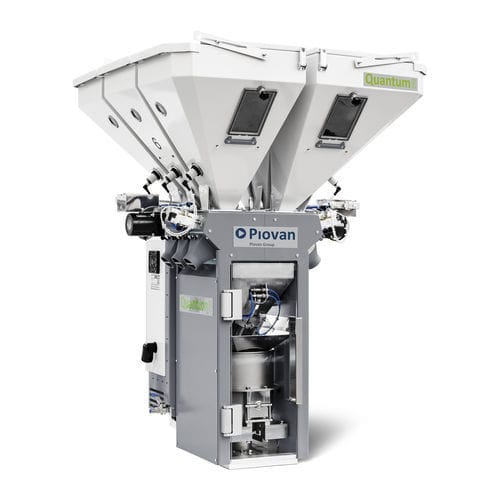

Gravimetric batch blender Quantum E

weightloss-in-weightfor extrusion lines

Overview
Quantum E is a gravimetric batch blender for precise dosing and continuous extrusion control. It supports single and co-extrusion lines and is prepared for integration with Winfactory 4.0 for full process traceability.

Key features

• Up to 8 dosing stations (6 central + 2 side) configurable per line layout
• Double load cells implementing loss-in-weight weighing for accurate throughput detection
• Patented spherical mixer for homogeneous blending; mixer and weigh hopper are easy to remove for cleaning
• Available models: QE200, QE600, QE1200

Design & maintenance

• Modular dosing stations can be added or replaced by a single operator without complex manoeuvres
• Internal parts easily accessible; batch hopper and mixer removable for cleaning and maintenance
• Mixing chamber mounted on double load cells to provide reliable throughput calculation

Control & traceability

• Latest-generation PLC with colour touchscreens (7" / 10" / 15") and intuitive HMI
• Ethernet and USB ports for log download and integration with supervision systems (e.g., Winfactory 4.0)
• Prepared for TeleService and Industry 4.0 connectivity to support production monitoring and remote assistance

Technical specifications

• Type: Gravimetric batch blender with continuous extrusion control
• Dosing stations: Up to 8 (6 central + 2 side)
• Weighing system: Double load cells; loss-in-weight measurement principle
• Mixer: Patented spherical mixer; removable for cleaning
• Control: PLC with colour touchscreen up to 15"
• Models: QE200, QE600, QE1200
• Applications: Single extrusion and co-extrusion lines; suitable for hygienic/critical environments when fitted with stainless contact surfaces
