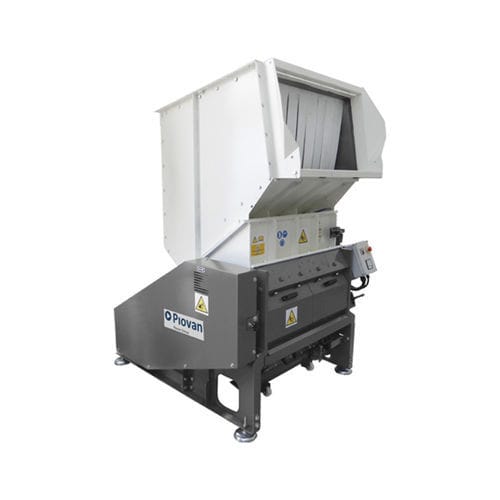

Knife granulator G40 series

for plasticsfor plastic wastefor the plastics industry

Product
Multi-purpose granulator G40 designed for size reduction of production scrap and recycling in molding and extrusion operations.

Overview
The G40 (and G42 series) are fully sound-enclosed granulators suitable for injection moulding, blow moulding and extrusion. Optional feeding hoppers for sheets and pipes extend the machine's suitability. The main feeding hopper is hinged and manually operated for simplified cleaning and maintenance.

Highlights

• Throughput up to 700 kg/h
• High wear resistance with side-plate configuration
• Scissor cutting action reduces energy consumption, heat build-up and dust
• Hinged, manually operated hopper for easier cleaning and maintenance
• Adjustable rotary knife improves cutting quality, reduces dust and noise and lowers power use
• Fully sound-enclosed design for low operating noise

Applications

• Injection moulding
• Blow moulding
• Extrusion
• Sheet and pipe recycling/processing with optional hoppers

Additional information
The scissor cutting principle ensures efficient size reduction while minimizing heat and dust. Wear-resistant configurations extend component life in abrasive applications. Optional hoppers adapt the G40 for sheet and pipe processing, improving integration with production lines.

Technical specifications

• Throughput: up to 700 kg/h
• Cutting: scissor cutting action; double-bevel design to reduce energy and heat
• Knife: adjustable rotary knife to optimize cutting and reduce dust/noise
• Hopper: hinged main feeding hopper, manually operated for easy cleaning
• Wear protection: side-plate configuration for high wear resistance
• Enclosure & safety: fully sound-enclosed; complies with high safety standards
• Applications: injection moulding, blow moulding, extrusion; optional hoppers for sheets and pipes
