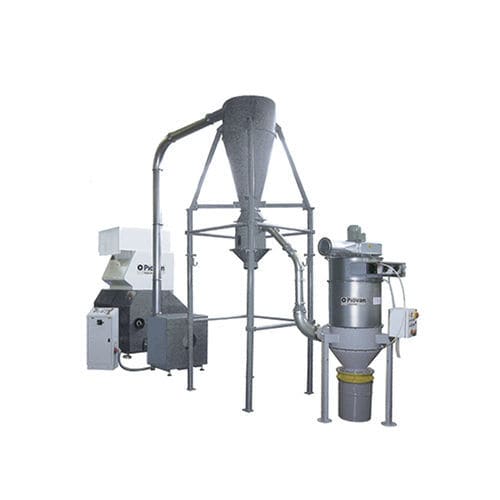

Cartridge industrial dust collector KD series

self-cleaningvacuumfor grinding dust

Overview
The KD series is designed for the de-dusting of regrind material to improve product quality. Process air is filtered and may be returned to the atmosphere to maintain a clean and safe working environment.

Key features

• Capacity: up to 1,500 kg/h
• Produces high-quality regrind material
• Clean and safe working environment
• Suitable for a wide variety of applications

Details
The systems are configured for floor-standing use and can be fitted to new or existing grinders. They are equipped with an air suction system operating under vacuum and a cartridge filter. Automatic cartridge cleaning is supplied as standard except for model KD01.

Accessories

• Big-bag support
• Metal separator
• Antistatic bar

Availability restrictions
Not available in: BO, BR, UY, EC, PY, AR, CL, PE, VE, CO

Technical specifications

• Series: KD
• Function: De-dusting of regrind material
• Capacity: up to 1,500 kg/h
• Air treatment: Process air filtered and may be returned to atmosphere
• Configuration: Floor-standing; can be fitted to new or existing grinders
• Suction: Air suction system under vacuum
• Filtration: Cartridge filter with automatic cartridge cleaning (automatic cleaning not available for KD01)
• Optional accessories: Big-bag support; metal separator; antistatic bar
