Knife granulator N45 series

for polymersfor plasticsfor metals

Overview

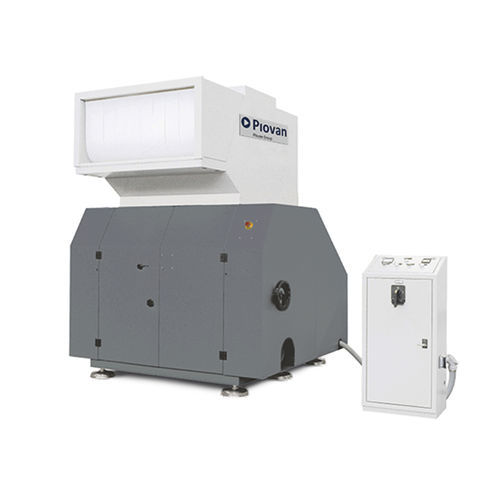

The N45 series granulators are heavy‑duty machines designed for granulation of plastics, rubber, light metals and general industrial wastes. The cutting chamber diameter is Ø450 mm. Two main models (N45-100, N45-160) and more than 30 equipment variants cover a wide range of feeding and discharge configurations. Remote control is provided in a separate enclosure and the machine is fully sound enclosed for low operating noise while meeting applicable safety requirements.

Key features

• Capacity: up to 1,400 kg/h
• Scissor cutting action with double‑inclination design for efficient cutting
• Cutting chamber: Ø450 mm
• Remote control mounted in a separate enclosure for flexible installation
• Hopper and screen cradles designed for quick access and easy maintenance
• Fully sound enclosed construction to reduce operating noise
• Multiple feeding hopper options including solutions for manual feeding of pipes and profiles

Applications

• Granulation of production scrap and offcuts in plastics processing
• Recycling and waste size reduction
• Processing of rubber and light metal scraps

Models

• N45-100
• N45-160

Technical specifications

• Model name: N45 (variants: N45-100, N45-160, +30 versions)
• Maximum throughput: up to 1,400 kg/h
• Cutting chamber diameter: Ø450 mm
• Cutting system: scissor cutting action (double‑inclination)
• Materials processed: plastics, rubber, light metals, general wastes
• Control: remote control in separate enclosure
• Maintenance: hopper and screen cradles for quick cleaning and service access
• Acoustic: fully sound enclosed for low operating noise
• Feeding options: multiple hopper configurations including manual feeding for pipes and profiles
• Compliance: designed to meet industry safety requirements
