Centrifugal pump TPKR
for wastewaterwith electric motornormal priming

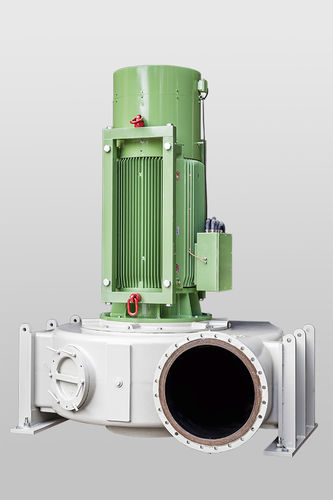

Centrifugal pump - TPKR - Pleiger Maschinenbau GmbH & Co. KG - for wastewater / with electric motor / normal priming

Centrifugal pump - TPKR - Pleiger Maschinenbau GmbH & Co. KG - for wastewater / with electric motor / normal priming - image - 2

Add to favorites

Compare this product

Characteristics

Technology

centrifugal

Fluid

for wastewater

Operation

with electric motor

Priming

normal priming

Mobility

stationary

Domain

industrial

Protection level

IP68

Other characteristics

dry

Input diameter

Min.: 100 mm
(3.937 in)

Max.: 700 mm
(27.559 in)

Description

Overflow-proof and easy to maintain! The new PLEIGER centrifugal pump type TPKR offers all advantages of a dry installed centrifugal pump and is completely overflow-proof. The motor, terminal box and fan are IP68 rated and guarantee uninterrupted operation. The innovative design of the TPKR centrifugal pump is an alternative for new pumping stations or modernizations where bearing bracket pumps are usually used. The block design of the pump eliminates the need to consider an additional “dry” level and this saves effort and costs from the planning phase onward. Your advantages: Safe operation in the event of overflow No consequential damage due to pump failure Second “dry” level not applicable Maintenance-friendly design due to block design Replacement for bearing bracket pumps in new buildings and conversions Available for nominal width ranges from DN100 to DN700
