Welding downdraft table DRAFTMAX ECO
for plasma cuttingfor laser cutting

welding downdraft table
welding downdraft table
welding downdraft table
welding downdraft table
welding downdraft table
Add to favorites
Compare this product


Characteristics

Applications
for welding, for plasma cutting, for laser cutting

Description

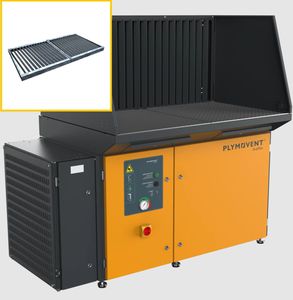

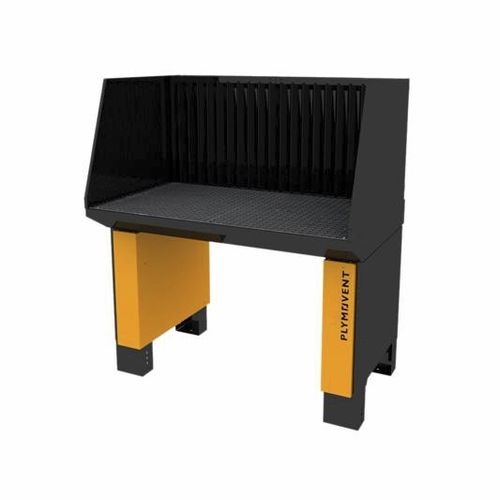

The DraftMax Eco is a downdraft work bench with an integrated spark arrester, but contains no filter cartridges. It is suitable for light to heavy welding, grinding and cutting applications depending on the filter. Features • Suited for welding, cutting and grinding • Efficient fume extraction by down and backdraft • To be connected to a filter unit The DraftMax Eco is a downdraft table that extracts fumes and dust effectively. The DraftMax Eco is a workbench, to be connected to an external extraction/filter system. Approx. 80% of the air is extracted through the backdraft panel and the remaining 20% through the work grid. Extraction facility to be connected to air outlet on top of the backdraft panel. DraftMax Eco is a downdraft workbench with an integrated spark arrester, but contains no filter cartridges. DraftMax Eco is suited for ductwork. It has to be connected to an external fan and filtration system, such as Plymovent's SCS or MDB filtration unit. The DraftMax Eco contains no filters, but can be equipped with optional spark arresters to be mounted in the backdraft panel. The dust collection tray is prepared for two optional dust containers. Depending on the specific application, the downdraft table can be provided with a special work grid. The working height of the downdraft table is adjustable. Features Suited for ductwork System solution The working height of the table is adjustable. Step up your game with one of these options DraftMax Eco Suitable for light to heavy welding, grinding and cutting applications depending on the filter.
