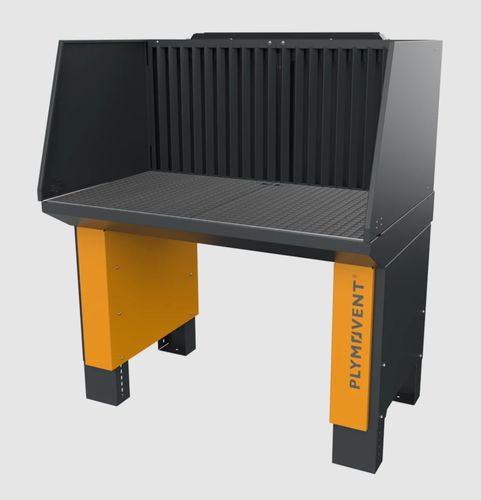

Plasma cutting downdraft table DraftMax Ecos

The DraftMax Eco contains no filters, but can be equipped with optional spark arresters to be mounted in the backdraft panel. Used for light to heavy plasma cutting depending on the ductwork Features Work bench with fume extraction Suited for ductwork Optional backdraft for fast-rising fumes The DraftMax Eco for plasma cutting is a downdraft table that extracts fumes and dust effectively. The DraftMax Eco is a workbench, to be connected to an external extraction/filter system. Approx. 80% of the air is extracted through the backdraft panel and the remaining 20% through the work grid. Extraction facility to be connected to air outlet on top of the backdraft panel. The DraftMax Eco contains no filters, but can be equipped with optional spark arresters to be mounted in the backdraft panel. DraftMax Eco is suited for ductwork. It has to be connected to an external fan and filtration system, such as Plymovent's MDB filtration unit. The dust collection tray is prepared for two optional dust containers. Depending on the specific application, the downdraft table can be provided with a special work grid. The working height of the downdraft table is adjustable. Features Suited for ductwork System solution The working height of the table is adjustable. Plasma cutting work grid Specially constructed work grid, which is compulsory for plasma cutting applications (current max. 50 A). The plasma cutting work grid consists of two frames with 13 bars each and two additional spark arresters to be mounted over the existing ones in the downdraft table.
