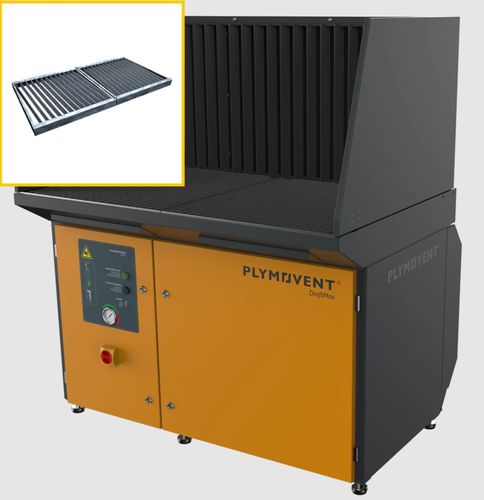

Welding downdraft table DraftMax Ultras

for plasma cuttingself-cleaning

The DraftMax Ultra for plasma cutting is a work bench fitted with a self-cleaning filter system. The effective cleaning system ensures constant and high filter efficiency. This unit is recommended for daily, heavy-duty plasma cutting. In addition, cleaning starts automatically as soon as the fan is switched off. Features Integrated filter Self-cleaning filter cartridges for more intenstive use Maintenance-friendly The DraftMax Ultra for plasma cutting is a downdraft table with an automatic self-cleaning fliter Recommended for Daily, heavy duty plasma cutting Professional workshops Light welding and grinding activities The DraftMax Ultra is a workbench that provides extraction and filtration for welding and grinding applications. The DraftMax Ultra features a work grid, a three-stage pre filtration system for optimum spark arresting and two self-cleaning main filter cartridges. Both drawers are underneath. The filter cleaning system starts when the pressure drops and main filters have pull-out dust containers for when they reach a certain maximum value during use (online cleaning). The filter cartridges are individually cleaned from the inside by compressed airshots. An integrated buzzer indicates when the filter cartridges need to be replaced. Safety The integrated spark arrester prevents sparks from reaching the filter cartridges. The spark arrester is placed underneath the working surface of the downdraft table to ensure a safe workplace. Plasma cutting work grid Specially constructed work grid, which is compulsory for plasma cutting applications (current max. 50 A).
