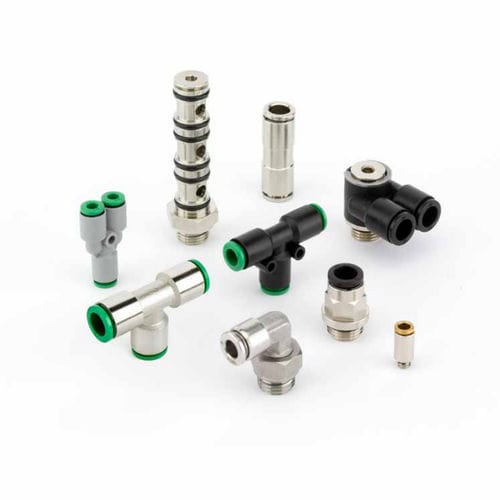

Pneumatic fitting RAP series

push-inbrass

"RAP" SERIES BRASS PUSH-IN FITTINGS "RAP" Series, Brass push-in fittings RAP Series, brass push-in fittings "RAP" TECHNICAL SHEET The RAP sériés push-in fittings are produced in Italy according to the reference ISO norms as warranty of high quatity level and answer to the followings technical spécifications and applications: FLUIDS Compressed air (for different fluid pis contact our Technical Dept.) APPLICATIONS Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications SUGGESTED TUBES AND TOLERANCES TPU (Polyuréthane), PA11/PA12 (Polyamide), TPE (Polyethilene), TCO (Copolyester) Diam. between 4 and 10 mm +/- 0,05 - From 12 mm +/- 0,1 TEMPERATURES AND PRESSURES Températures and pressures usually dépend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 15 bar and a température range between -20°C and +70°C. At page 22 are indicated the load traction résistance values and the main working and breaking limit (Pressure and Température) of the main commercial tubing. NOTE: for more complété informations pis read the technical catalogue ofyour tube supplier. THREAD TYPE BSP paralell UNI-ISO 228, BSP tapered UNI-ISO 7, Metric ISO/R 262 MATERIALS Nickel plated brass UNI EN 12164 CW614N (body, swivel stems and bases), UNI EN 12165 CW617N (molded) POM copolymer IS01043-1 (sleeve, lock and supporting rings) Stainless Steel AISI301 austenitic (spring) NBR 70 DWGV-EN549 UL157 (seals)
