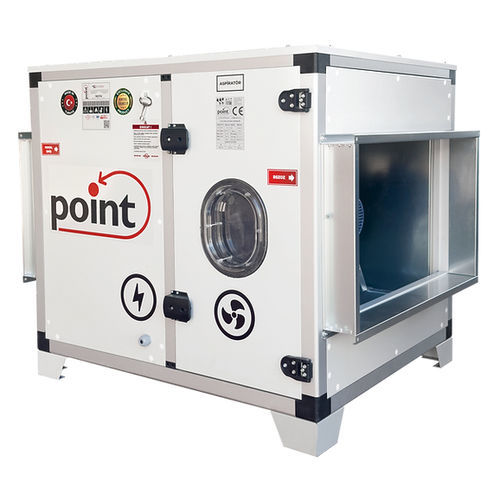

Centrifugal fan P-SH series
suctionventilationmobile

centrifugal fan
centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Configuration
centrifugal
Function
suction, ventilation
Other characteristics
mobile
Air flow

Max.: 20,000 m³/h (706,293.33 ft³/h)

Min.: 2,000 m³/h (70,629.33 ft³/h)

Description

Cell/Cabinet type Fans and Ventilators are produced in series in the desired suction and blowing directions in the capacity range of 1.000-75.000 m3 / h. The cells are made of the stone wool insulated, double walled and specially painted panels. The cells are produced with steel carcass profiles according to DIN 1886 norms. Inside the cells, there exist silent, double suction centrifugal fans for the high static pressure. The sealing is ensured entirely by the special sealing system. The motor group is equipped with the belt-pulley system having the special tensioning device and supported by anti-vibration wedges. The aluminium sealed damper systems can be utilised as an option. Depending on the requirement, they can be produced with the external motor and filter.

Catalogs

CATALOG
CATALOG
49 Pages
