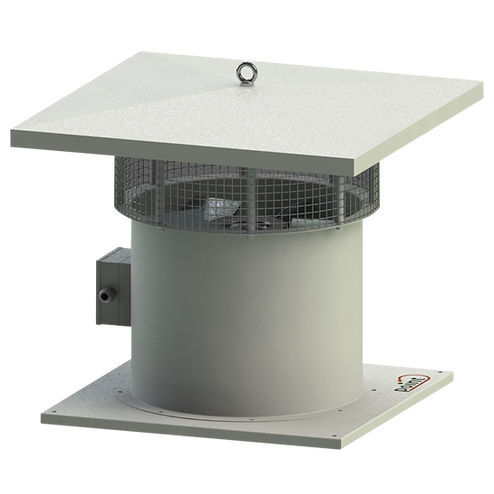

Axial fan P-CDTF seriesrooftopextraction380VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Type
- rooftop
- Function
- extraction
- Supply voltage
- 380VAC
- Drive mechanism
- electrically-powered
- Other characteristics
- flange, waterproof
- Air flow
Max.: 120,000 m³/h
(4,237,760.007 ft³/h)Min.: 5,500 m³/h
(194,230.667 ft³/h)- Rotational speed
1,500 rpm, 3,000 rpm
(9,425 rad.min-1, 18,850 rad.min-1)- Noise level
Max.: 105 dB
Min.: 90 dB
Description
• Speed adjustment (optional)
• Waterproof feature
• Low noise level
• Low energy consumption
• 300°C - 2H / 400°C - 2H
• Galvanized steel sheet case
• Electrostatic powder oven paint
• Aluminum propeller
• Specially designed wing structure
• Easy installation and assembly
• Leak-proof junction box cover
• Protective wire mesh (optional)
• Counter flange (optional)
• Vibration mount (optional)
• Flexible connection (optional)
• Silencer (optional)
