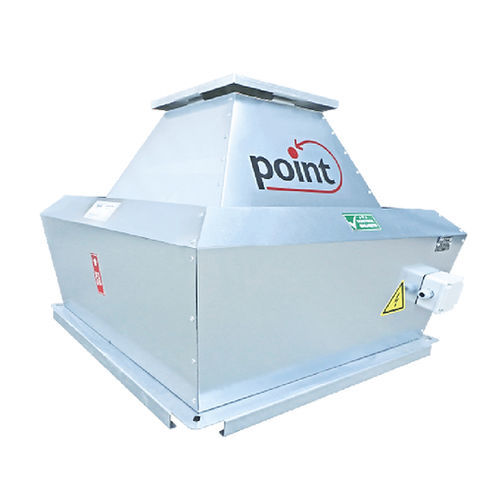

Radial fan P-DCF V seriesrooftopextraction230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- radial
- Type
- rooftop
- Function
- extraction
- Supply voltage
- 230VAC, 380VAC
- Drive mechanism
- electrically-powered
- Other characteristics
- backward curved, IP55
- Air flow
Max.: 10,800 m³/h
(381,398.401 ft³/h)Min.: 1,950 m³/h
(68,863.6 ft³/h)- Rotational speed
1,450 rpm
(9,111 rad.min-1)- Noise level
Max.: 66 dB
Min.: 53 dB
Description
• Outside the engine airflow
• Speed adjustment (optional)
• Low noise level
• Low energy consumption
• IP55 motor protection class
• Min/Max Ambient temperature -35/120°C
• Backward curved radial wings
• Galvanized sheet metal case
• Easy installation and assembly
