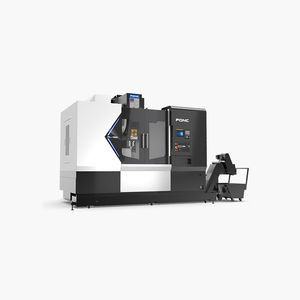

3-axis machining center PDE verticalfor steelfor copper
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for copper, for composites, for aluminum
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- drilling, cutting, milling, tapping
- Applications
- for profiles, for the automobile industry, heavy-duty
- Other characteristics
- high-precision
- X travel
Min.: 2,500 mm
(98.43 in)Max.: 6,500 mm
(255.91 in)- Y travel
550 mm
(21.65 in)- Z travel
700 mm
(27.56 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
18.5 kW
(25.15 hp)- Work feed X-axis
60 m/min
- Work feed Y-axis
28 m/min
- Work feed Z-axis
28 m/min
- Positioning accuracy
0.015 mm, 0.03 mm
(0.00059 in, 0.00118 in)- Repeatability
0.015 mm
(0.00059 in)- Tool-changing time
2 s
- Weight
10.5 t, 12.5 t, 14.7 t
(11.57 us ton, 13.78 us ton, 16.2 us ton)- Overall length
6,700 mm, 8,720 mm, 10,600 mm
(263.8 in, 343.3 in, 417.3 in)- Overall width
2,850 mm
(112.2 in)- Overall height
3,100 mm
(122 in)
Description
PONC CNC Machine PDE is a CNC composite profile machining center that integrates drilling, tapping, and milling;
Use international specialized CNC numerical control system;
The use of enlarged components can meet the requirements of heavy-duty machining;
Adopting fully protected sheet metal design;
Equipped with an automatic chip conveyor for easy cleaning;
Widely used in material processing in industries such as automotive, rail transit, mechanical parts, linear module guides, and communication.
TOOL MAGAZINE -
Type - / -
Disc type
AXIS FEED RATES -
X/Y/Z-Axis Cutting feed rate -
mm/min
15000
LUBRICATION AND COOLING SYSTEM -
Lubrication system - /
Automatic
Coolant system - /
Water cooling
MECHANICAL SPECIFICATION -
Required pneumatic pressure - kg/cm² - 6
cnc system - / -
SIEMENS/FANUC
