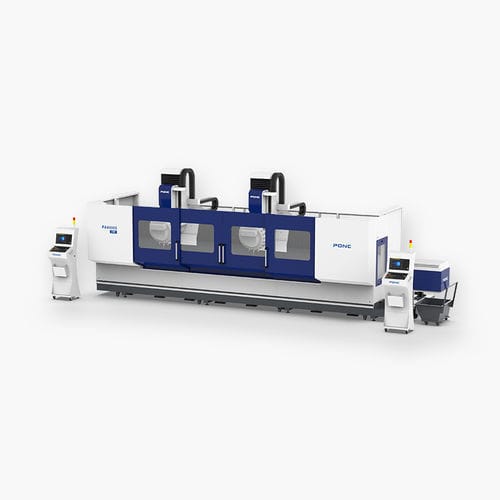

3-axis machining center PA4900S-2W verticalfor aluminumBT 30
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- Spindle mount
- BT 30, CAT30, SK30
- Number of tool stations
- 16 tools, 21 tools
- Applications
- for aluminum profiles
- Other characteristics
- high-performance
- X travel
2,050 mm
(80.71 in)- Y travel
400 mm
(15.75 in)- Z travel
400 mm
(15.75 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
16.2 kW
(22.03 hp)- Work feed X-axis
50 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
36 m/min
- Positioning accuracy
0.01 mm, 0.02 mm
(0.00039 in, 0.00079 in)- Repeatability
0.004 mm, 0.008 mm
(0.00016 in, 0.00031 in)- Tool-changing time
3 s
- Weight
8.7 t
(9.59 us ton)- Overall length
6,550 mm
(257.9 in)- Overall width
3,500 mm
(137.8 in)- Overall height
2,800 mm
(110.2 in)
Description
1.The PA series structure with high machine bed, which can effectively preventwater chips from splashing outside the equipment, meanwhile protectimportant parts such as guideways and screws, improve the machine's lifetimeand reliability.
2.The 4900 model optional double head, X-axis rapid movement speed is 50m/minbetter dynamic performance and higher acceleration.
3.The bottom of the worktable is designed with a large inclined surface for chipremoval, which is more convenient for cleaning and chip removal.
4.This PA model is widely used in electronic appliance, customized furniture andother aluminum frame processing.
TOOL MAGAZINE -
Type - / -
UFO-type
AXIS FEED RATES -
X/Y/Z-Axis Cutting feed rate -
mm/min
15000
LUBRICATION AND COOLING SYSTEM -
Lubrication system - /
Automatic
Coolant system - /
Water cooling
MECHANICAL SPECIFICATION -
Required pneumatic pressure - kg/cm² - 6
cnc system - / -
SIEMENS/FANUC
