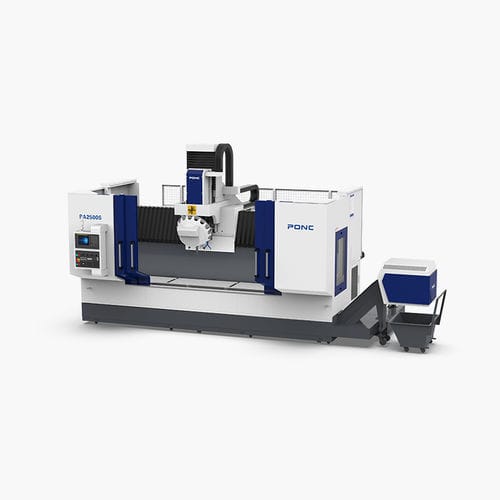

Profile machining center PA series

3-axisverticalfor aluminum

1. Adopting a high bed structure to effectively prevent water debris from splashing outside the equipment, while effectively protecting important parts such as guide rails and screw rods, improving equipment life and reliability; 2.The 2500 model comes standard with X-axis screw drive and an integrated control cabinet (fixed) to meet the demand for higher machining accuracy. The fast speed reaches 50m/min, and the equipment has superior dynamic performance and higher acceleration; 3. The bottom of the workbench is designed with a large inclined surface for chip removal, making cleaning and chip removal more convenient; 4. Widely used in the processing of profile parts such as electronic appliances, customized home furnishings, and aluminum profile frames. TOOL MAGAZINE Type - / - UFO-type AXIS FEED RATES X/Y/Z-Axis Cutting feed rate - mm/min 15000 LUBRICATION AND COOLING SYSTEM Lubrication system - / Automatic Coolant system - / Water cooling MECHANICAL SPECIFICATION Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
