3-axis CNC machining center PL855
verticalBT 40SK40

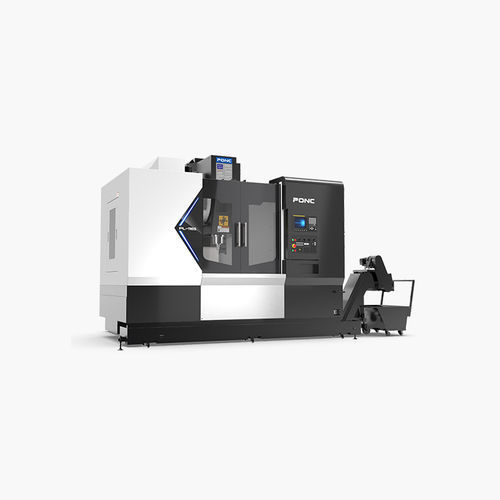

3-axis CNC machining center - PL855 - PONC CNC - vertical / BT 40 / SK40
3-axis CNC machining center - PL855 - PONC CNC - vertical / BT 40 / SK40
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 40, SK40, CAT40, BBT40
Number of tool stations
24 tools
Associated functions
milling, drilling, tapping
Applications
for profiles
X travel

800 mm
(31.5 in)

Y travel

550 mm
(21.65 in)

Z travel

550 mm
(21.65 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

18.5 kW
(25.15 hp)

Work feed X-axis

48 m/min

Work feed Y-axis

48 m/min

Work feed Z-axis

48 m/min

Positioning accuracy

0.005 mm
(0.0002 in)

Repeatability

0.005 mm
(0.0002 in)

Tool-changing time

2 s

Weight

5.5 t
(6.06 us ton)

Overall length

2,600 mm
(102.4 in)

Overall width

2,600 mm
(102.4 in)

Overall height

3,100 mm
(122 in)

Description

• The machine integrates milling, drilling and tapping functions • Processing of metal profiles of various lengths such as aluminum, steel, copper and non-metallic materials. • Widely used in railway transport industry, guide linear modules, etc. TOOL MAGAZINE - Type - / - Disc type AXIS FEED RATES - X/Y/Z-Axis Cutting feed rate - mm/min 10000 LUBRICATION AND COOLING SYSTEM - Lubrication system - / Automatic Coolant system - / Water cooling MECHANICAL SPECIFICATION - Required pneumatic pressure - kg/cm² - 6 cnc system - / - SIEMENS/FANUC
