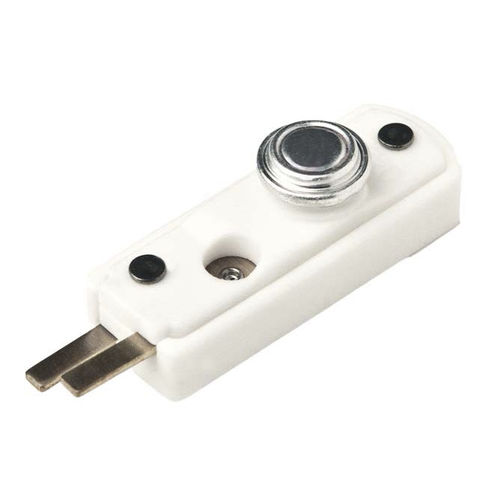

Bimetallic thermostat H-7
preset

bimetallic thermostat
bimetallic thermostat
bimetallic thermostat
Add to favorites
Compare this product


Characteristics

Heating technology
bimetallic
Type
preset
Temperature

Min.: 200 °C (392 °F)

Max.: 260 °C (500 °F)

Description

These Snap Action Thermostats operate as a high limit, single operation (non-resettable) type control. Ultra fast thermal response times due to the unique positon of the bimetal element. The ceramic case allows them to operate at temperatures up to 260°C. As single operation thermostates they perform like a thermal fuse with the reliability of a 100% tested bimetallic thermal control. Features ________________________________________ •Snap action devices; quick make/quick break switching action. •Single Operation type devices. Reset temperature is less than -35°C. This prevents the thermostat from resetting under normal operating conditions. •Unique positioning of the bi-metallic element allows for excellent heat transfer for improved reaction time. •Available with exposed bi-metallic elements for even faster thermal response. •Ceramic case isolates devices from the electrical circuit and is suitable for use in high temperature applications. •Can be mounted directly on a heated surface. •Preset calibration temperature, not adjustable in the field. •Opposite end termination allows for flexibility of installation. •Factory installed lead wires or terminals available – Consult Factory. Contact Ratings ________________________________________ •15 amps / 250V AC (resistive) •CUL, TUV Calibration Range ________________________________________ •Available with nominal calibration temperatures from 200°C to 260°C. Applications ________________________________________ •Almost anywhere ultimate safety is required. Included are curling irons and many other small appliances.
