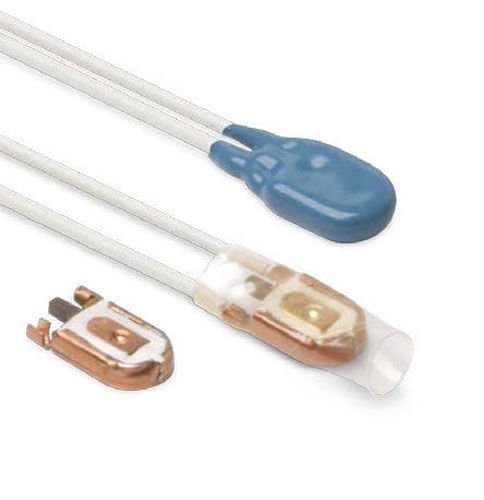

Epoxy-coated thermal protector 11MP series

snap-action

A line of snap-action thermal protectors offering the versatility PEPI® customers have become accustomed to in a new configuration. These economical and reliable protectors have a small footprint and is designed for use on inductive-type loads. Three basic styles are available with various bimetallic elements to match the current and temperature sensitivity of the device to the application. Features ________________________________________ •Snap-action design, quick break/quick make switching action. •Opens circuit on temperature rise (normally closed). •Conductive bimetal construction: The bimetal carries the circuit current for maximum sensitivity under short circuit conditions. •Extremely small footprint and low profile design. •Available with various bimetallic elements to match sensitivity needs of the application. •Preset calibration temperature; not adjustable in the field. •E-Type: Epoxy encapsulated. •S-Type: Heat-shrink mylar insulating sleeve. •N-Type: Without insulating sleeve. Contact Ratings ________________________________________ •4.5 AMPS/250VAC (L Type Bimetal) 10,000 cycles •7 AMPS/250VAC (H Type Bimetal) 3,000 cycles •UL & C-UL File No. E42562 •EN 60730-2-9 File No. CA02 02987 •EN 60730-2-2 File No. CA02 02988 Calibration Range ________________________________________ •Available with nominal calibration temperatures from 70°C to 160°C in increments of 5°C. •Standard tolerance of ±7°C, ±5°C is available. Standard Configuration ________________________________________ •Standard leads are #22 gauge, UL1332 approved, white, FEP insulation, 200°C/300V. •Different leads available on request. •Maximum lead length for E-Type is 300mm.
