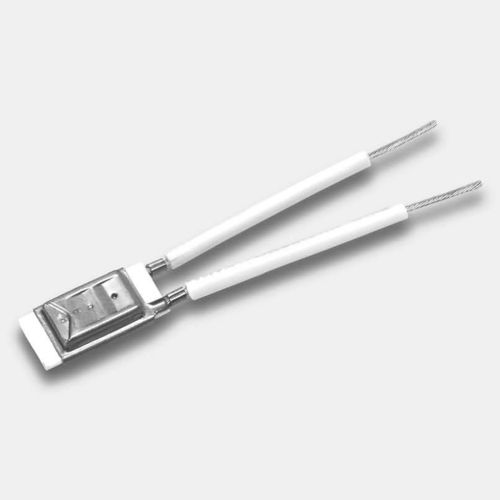

Bimetallic thermostat J(A)

bimetallic thermostat
bimetallic thermostat
bimetallic thermostat
Add to favorites
Compare this product


Heating technology
Other characteristics

Max.: 160 °C (320 °F)

Min.: 2 °C (36 °F)


A snap-action thermostat specially designed for 120 and 240 VAC appliance and other heated applications. Available with either a wide or narrow differential between opening and closing temperatures for tighter temperature control. Features ________________________________________ •Snap-action device; quick make/quick break switching action. •Temperature differential between opening and closing can be specified from 2° C to 40° C. Tighter differentials available upon request. •Conductive bimetal construction; the bimetallic element carries the circuit current for maximum sensitivity under short circuit conditions. •Preset calibration temperature; not adjustable in the field. •Case electrically alive; insulating sleeving is available. •Available with factory applied lead wires. Contact Ratings ________________________________________ •5 amps/120 volts AC resistive •4 amps/240 volts AC resistive •VDE certified Please consult our Sales Engineers for suggested contact ratings when applied to DC type loads. Calibration Range ________________________________________ •Available with nominal calibration temperatures from 50° C to 160° C
