Encapsulated DC/DC converter CRS-1000
DIN railfor railway applicationsindustrial

encapsulated DC/DC converter
encapsulated DC/DC converter
Add to favorites
Compare this product


encapsulated, DIN rail
for railway applications, industrial
Other characteristics
insulated, adjustable

1,000 W

Input voltage

24 V, 36 V, 48 V, 72 V, 110 V

Output voltage

24 V, 48 V

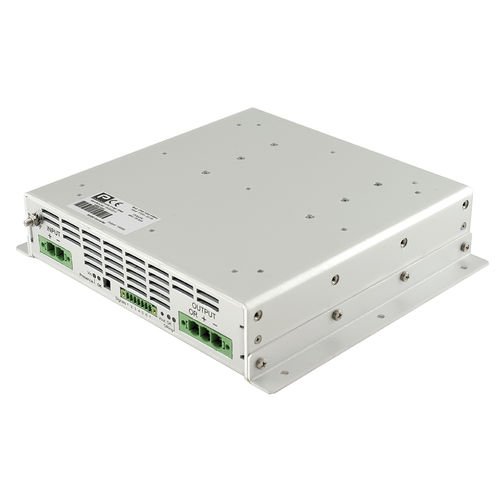

The CRS-1000 is a 1000W DC/DC converter with a compact and robust design. It fits in a wide range of applications and it offers options such as hold up time 10ms, active protection against input reverse polarity, active inrush current limiter, and different cooling options. KEY FEATURES ORing FET option High input-output isolation Adjustable output voltage Remote sensing Remote inhibit Input & Output OK LEDs Output failure alarm Input reverse polarity protection Different cooling options According to the standard EN50155 Fire and smoke: EN45545-2 approved Efficiency up to 93% PRODUCT WARRANTY 3 years for Industrial version 5 years for Railway version ACCESSORIES Power mating connector (input) Power mating connector (output) Signals mating connector Guiding plates for 6U subrack mounting Front brackets for 6U subrack mounting 19″ rackmount tray kit (2U)


10 Pages
