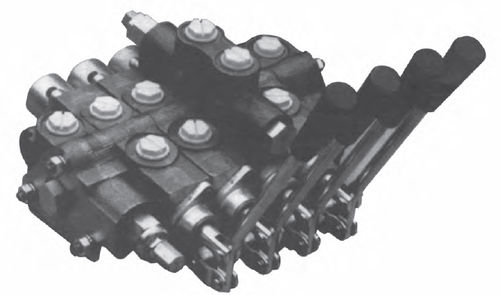

Spool hydraulic directional control valve lever-operated4-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 4-way
- Operating pressure
Max.: 3,000 psi
Min.: 1,500 psi
- Flow rate
12 us gal/min
(45.4 l/min)
Description
Model SV Stack Valve - 12 GPM
STANDARD FEATURES
1-10 Sections Per Valve Bank
Load Checks On Each Section
Hard Chrome Plated Spools
Compact Construction
Enhanced Metering Section Available in both the High and Low Sections
Differential Poppet Style Relief, Adjustable from 1500 to 3000 psi (Also
available in Low Pressure Version Adjustable from 500 to 1500 psi)
Power Beyond Capability
Reversible Handle
Mid-Inlet and Lock Valve Section available
Flow Control Inlet
Catalogs
No catalogs are available for this product.
See all of Prince‘s catalogsOther Prince products
