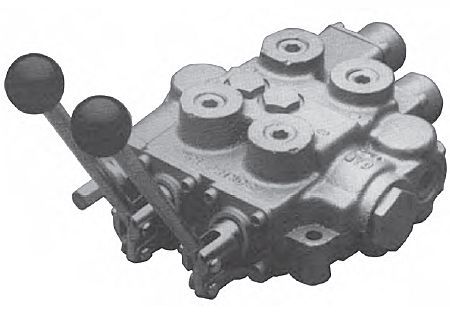

Spool hydraulic directional control valve RD5200

lever-operatedmonobloc

Model RD5200 Mono-Block Valve - 25 GPM STANDARD FEATURES Economical monoblock construction of high tensile strength gray cast iron. Load check on each spool Hard Chrome Plated Spools Optional 4 Position Float and Joystick Handle Differential poppet style relief, adjustable from 1500 to 3000 psi (also available in low pressure version adjustable from 500 to 1500 psi) Power beyond and closed center capability Reversible Handle Solenoid Actuated Option Available Optional 4 Position Float and Joystick Handle Ideal for loader application
