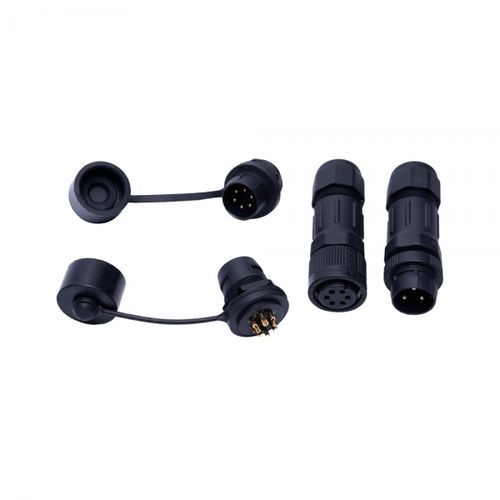

Electrical power supply connector PLBS2-MB0A-LS0-00

wire-to-wirepush-to-lockcurrent

The PLBS2-MB0A-LS0-00 is a B-size push-lock field-attachable male connector from PRODACONN's Push-Lock Series, designed for fast, tool-free single-hand mating and secure locking to improve assembly efficiency and reduce maintenance time in demanding industrial environments.

Typical applications:

• Industrial Automation
• Sensors & Controls
• Lighting Systems
• Machinery & Equipment
• Communication & Surveillance

Key features:

• Tool-free, single-hand push-lock mating for rapid connection
• Field-attachable (solder type) for on-site installation and repair
• B-size housing with nylon + glass-filled nylon (GF) shell
• Copper-alloy contacts rated at 10A
• Low contact resistance ≤ 10 mΩ and insulation resistance ≥ 100 MΩ

Technical specifications:

• Product type: Connector (Push Lock Assembly)
• Assembly type: Male type
• Connector size: B Size
• Current rating: 10A
• Mating type: Push Lock Type
• Shell material: Nylon + GF (Glass-Filled Nylon)
• Contacts: Copper Alloy
• Field installable: Solder Type
• Insulation resistance: ≥ 100 MΩ
• Contact resistance: ≤ 10 mΩ
