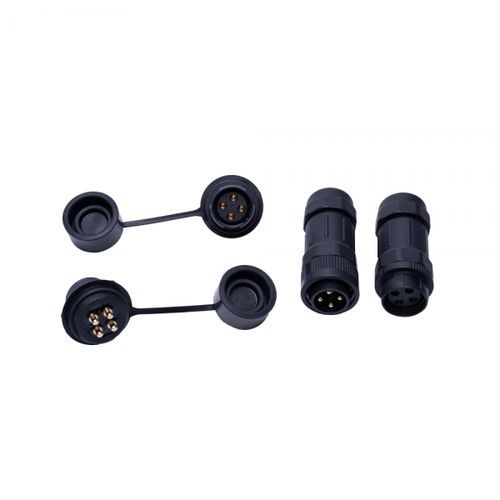

Circular connector PLD04-FG0A-LS0-00push-to-lockfemalecurrent
Add to favorites
Compare this product
Characteristics
- Shape
- circular
- Connection type
- push-to-lock, female
- Electrical characteristics
- current
- Material
- glass-fiber reinforced polyamide, copper alloy, nylon
- Product applications
- O-ring
- Other characteristics
- field-attachable
- Primary current
40 A
Description
Overview
The PLD04-FG0A-LS0-00 is a D-size Push-Lock circular field-attachable connector from PRODACONN's Push-Lock Series, designed for fast, tool-free single-hand mating and secure locking to improve assembly efficiency and reliability in demanding environments.
Typical applications
Technical specifications
The PLD04-FG0A-LS0-00 is a D-size Push-Lock circular field-attachable connector from PRODACONN's Push-Lock Series, designed for fast, tool-free single-hand mating and secure locking to improve assembly efficiency and reliability in demanding environments.
Typical applications
- Industrial automation
- Sensors & controls
- Lighting systems
- Machinery & equipment
- Communication & surveillance
Technical specifications
- Connector type: Push-Lock circular assembly
- Assembly: Female type
- Denomination / Product family: Push Lock D Size Field Attachable
- Connector size: D Size
- Current rating: 40A
- Mating type: Push Lock type
- Shell material: Nylon + GF (glass-fiber reinforced nylon)
- Contacts: Copper alloy
- Field installable: Solder type
- Insulation resistance: ≥ 100MΩ
- Contact resistance: ≤ 10mΩ
