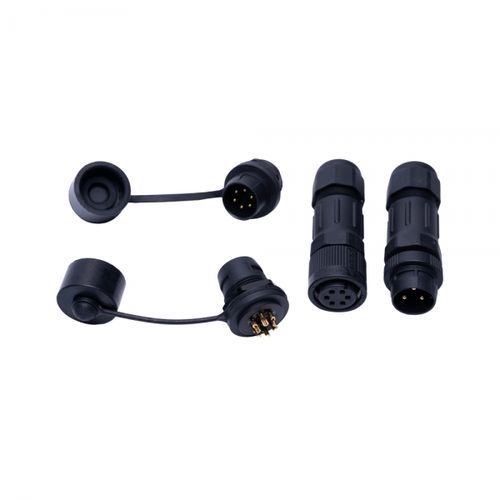

Electrical power supply connector PLB04-MB0A-LS0-00wire-to-wirepush-to-lockcopper
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- wire-to-wire
- Connection type
- push-to-lock
- Material
- nylon, copper, fiberglass
- Other characteristics
- field-attachable
- Primary current
10 A
Description
Overview
The PLB04-MB0A-LS0-00 is a Push-Lock B Size field-attachable connector designed for fast, tool-free single-hand mating and secure locking in demanding industrial environments. It streamlines assembly and maintenance while ensuring reliable electrical connections for automation and machinery systems.
Typical applications
Product details
Technical specifications
The PLB04-MB0A-LS0-00 is a Push-Lock B Size field-attachable connector designed for fast, tool-free single-hand mating and secure locking in demanding industrial environments. It streamlines assembly and maintenance while ensuring reliable electrical connections for automation and machinery systems.
Typical applications
- Industrial automation
- Sensors & Controls
- Lighting systems
- Machinery & Equipment
- Communication & Surveillance
Product details
- Product family: Push-Lock Series
- Product ID / Assembly: Push Lock Assembly
- Connector type: Connector (Assembly Male Type)
- Connector size: B Size
- Mating type: Push Lock Type
- Current rating: 10 A
- Shell material: Nylon + GF
- Contacts: Copper alloy
- Field installable: Solder type
- Insulation resistance: ≧ 100mΩ
- Contact resistance: ≦ 10mΩ
Technical specifications
- Series: Push-Lock (B Size field-attachable)
- Mating mechanism: Tool-free Push-Lock for single-hand operation
- Rated current: 10 A
- Shell material: Nylon reinforced with glass fiber (Nylon+GF)
- Contact material: Copper alloy
- Field installation: Solder-type field installable
- Insulation resistance: ≥ 100 mΩ
- Contact resistance: ≤ 10 mΩ
