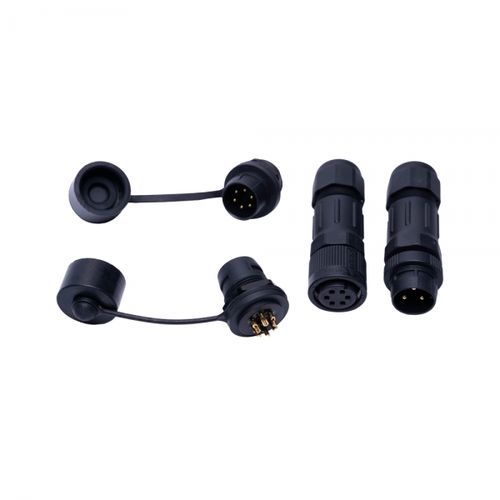

Circular connector PLB05-MB0A-LS0-00push-to-lockcurrentnylon
Add to favorites
Compare this product
Characteristics
- Shape
- circular
- Connection type
- push-to-lock
- Electrical characteristics
- current
- Material
- nylon, glass-fiber reinforced polyamide
- Product applications
- for sensors, lighting, for machines, for data and telecommunication lines, industrial
- Other characteristics
- panel-mount, field-attachable
- Primary current
10 A
Description
The PLB05-MB0A-LS0-00 is a Push-Lock B size circular panel connector designed for fast, tool-free single-hand mating and secure locking to support efficient assembly in industrial environments.
Overview
The Push-Lock series provides quick, field-friendly connection solutions for industrial automation, machinery, lighting and communication systems. The Push-Lock mechanism enables rapid mating and a positive lock without tools, reducing assembly time and minimizing handling steps.
Typical applications
Technical specifications
Overview
The Push-Lock series provides quick, field-friendly connection solutions for industrial automation, machinery, lighting and communication systems. The Push-Lock mechanism enables rapid mating and a positive lock without tools, reducing assembly time and minimizing handling steps.
Typical applications
- Industrial automation
- Sensors & controls
- Lighting systems (LED fixtures)
- Machinery & equipment
- Communication & surveillance systems
Technical specifications
- Product family / PD-ID: Push Lock Circular Panel
- Commercial designation: Push Lock B Size Field Attachable
- Connector type: Assembly male type
- Connector size: B size
- Current rating: 10 A
- Mating type: Push Lock
- Shell material: Nylon + GF
- Contacts: Copper alloy
- Field installable: Solder type
- Insulation resistance: ≥ 100 MΩ
- Contact resistance: ≤ 10 mΩ
