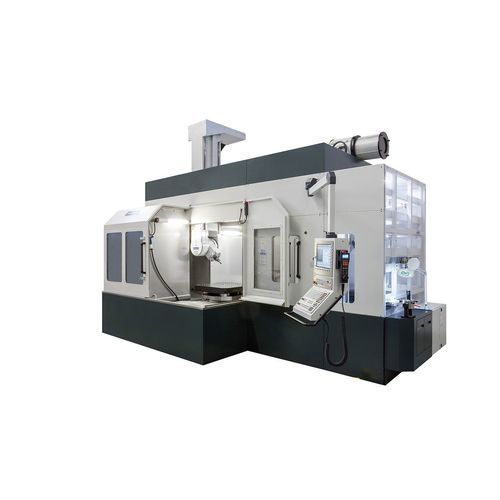

CNC machining center with sliding rotary table ZEPHYR VTR-D3-axis5-axis4-axis
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Structure
- with fixed portal, with sliding rotary table
- Spindle mount
- HSK A-63, HSK-100-A
- Number of tool stations
- 60 tools, 120 tools, 32 outils
- Applications
- drilling, for the aeronautical industry, for the mold industry, deep hole
- Other characteristics
- milling, high-speed, compact, high-performance, high-speed, high-precision, with integrated pallet changer, tilting-head
- X travel
2,400 mm
(94 in)- Y travel
1,000 mm
(39 in)- Z travel
1,000 mm
(39 in)- Rotational speed
12,000 rpm, 15,000 rpm, 20,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
30 kW, 37 kW
(40.79 hp, 50.31 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Table load capacity
1,000 kg, 1,500 kg, 2,000 kg, 2,500 kg
(2,205 lb, 3,307 lb, 4,409 lb, 5,512 lb)- Weight
16,000 kg
(35,273.96 lb)- Overall length
7,370 mm
(290.2 in)- Overall width
2,670 mm
(105.1 in)- Overall height
4,424 mm
(174.2 in)
Description
is a high-speed vertical bridge machine
center with a sliding rotating table.
This machining center is the right combination to satisfy
various processes for the following applications:
- MOLDS;
- AUTOMOTIVE;
- AEROSPACE;
- MECHANICAL APPLICATIONS;
- PRECISION PROTOTYPES;
- and other special applications.
ZEPHYR VTR-D allows to perform with a single set-up part clamping, operations as roughing, semi-finishing, finishing, drilling and deep drilling all around the piece even in 5 axes
continuous.
The working center is totally designed, built and assembled in Promac, using the most advanced 3D design software and FEM analysis. Max working envelope on 5 axes with a tool length of 3.9 inches. Compact footprint with generous travels.
Working center for milling, tapping, turning, drilling and deep drilling
Balanced distribution of dynamic and static masses
Monoblock bed ways with all mechanical components integrated
