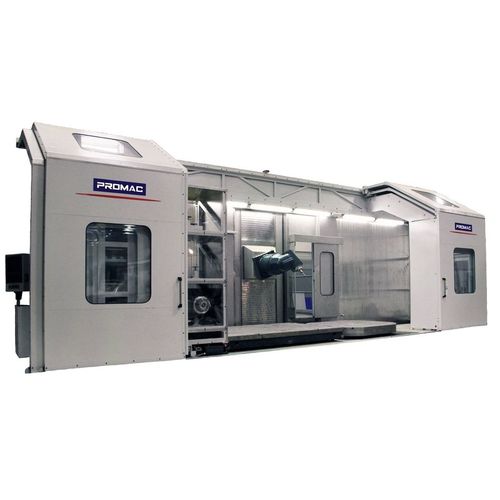

5/6-axis CNC machining center ETESIAN HMC4-axishorizontalfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5/6-axis, 4-axis
- Spindle orientation
- horizontal
- Machined material
- for steel, for composites
- Structure
- traveling-column, with rotary table
- Spindle mount
- HSK A-63, HSK-A 100
- Number of tool stations
- 32 tools, 120 tools, 64 tools, 200 tools, 300 tools
- Applications
- for the automobile industry, for molds, for the aerospace industry
- X travel
Max.: 32,000 mm
(1,259.84 in)Min.: 4,000 mm
(157.48 in)- Y travel
1,000 mm, 2,000 mm, 4,000 mm
(39.37 in, 78.74 in, 157.48 in)- Z travel
2,000 mm, 2,500 mm, 3,000 mm
(78.74 in, 98.43 in, 118.11 in)- Rotational speed
6,000 rpm, 15,000 rpm, 20,000 rpm
(37,699 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
Max.: 53 kW
(72.06 hp)Min.: 27 kW
(36.71 hp)- Workpiece max height
Max.: 1,500 mm
(59 in)Min.: 1,300 mm
(51 in)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
10,000 kg
(22,046 lb)- Overall length
14,600 mm
(574.8 in)- Overall width
8,640 mm
(340.2 in)- Overall height
4,700 mm
(185 in)
Description
Table 2x (3-4-6-8-12-32) m
6x (9-13-19-26-39-104) ft
Automatic head changer
