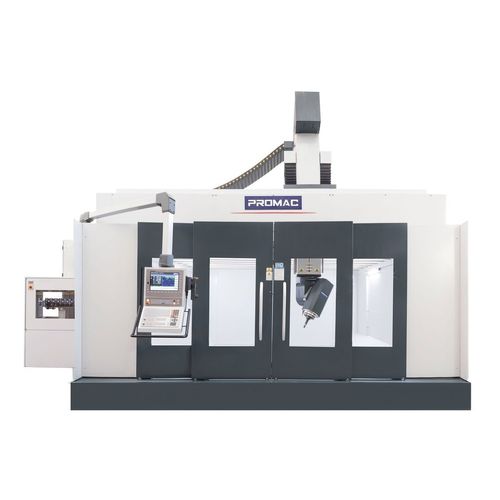

Gantry CNC machining center SHARAV LGVT3-axis5-axis4-axis
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Structure
- gantry, with fixed table
- Spindle mount
- HSK A-63, HSK-63, HSK-100
- Number of tool stations
- 60 tools, 120 tools, 32 outils, 200 tools, 300 tools, 64 tools
- Other characteristics
- high-speed, precision
- X travel
2,500 mm, 3,500 mm
(98 in, 138 in)- Y travel
1,600 mm, 2,200 mm, 4,000 mm, 6,000 mm, 8,000 mm
(63 in, 87 in, 157 in, 236 in, 315 in)- Z travel
1,000 mm, 1,200 mm, 1,400 mm
(39 in, 47 in, 55 in)- Rotational speed
15,000 rpm, 20,000 rpm
(94,248 rad.min-1, 125,664 rad.min-1)- Power
30 kW, 37 kW
(40.79 hp, 50.31 hp)- Table rotation (C axis)
200 °
- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Table load capacity
30,000 kg
(66,139 lb)- Weight
20,000 kg, 24,000 kg
(44,092.45 lb, 52,910.94 lb)- Overall length
5,977 mm, 6,399 mm
(235.3 in, 251.9 in)- Overall width
5,244 mm, 6,075 mm
(206.5 in, 239.2 in)- Overall height
4,642 mm, 4,868 mm
(182.8 in, 191.7 in)
Description
is a high-speed working center with double moving bridge gantry style and fixed table. This machining center is the right combination to satisfy various processes for the following applications:
- MOLDS;
- AUTOMOTIVE;
- AEROSPACE;
- MECHANICAL APPLICATIONS;
- PRECISION PROTOTYPES;
- and other special applications.
SHARAV LGVT allows to perform, with a single set-up part clamping, operations as semi-finishing and finishing all around the piece even in 5 axes continuous. The working center is totally designed, built and assembled in Promac, using the most advanced 3D design software
and FEM analysis.
Head with two axes driven by torque motors with continuous and/or simultaneous positioning for five axes machining operations
Fork head driven by torque motors with continuous and/ or simultaneous positioning for five axes machining operations.
Catalogs
Sharav LGVT
4 Pages
