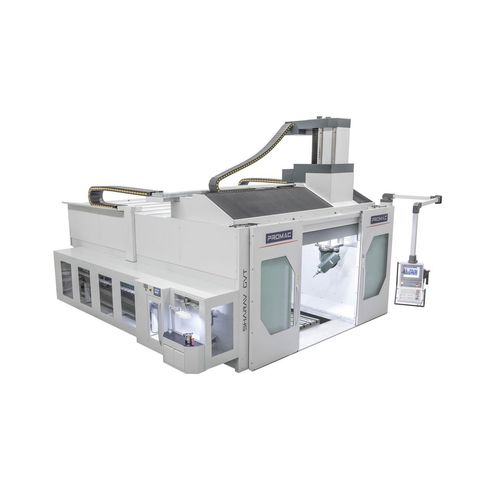

CNC machining center with fixed table SHARAV GVT series3-axis5-axis4-axis
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Structure
- gantry, with fixed table
- Spindle mount
- HSK A-63, HSK-100-A, HSK-100
- Number of tool stations
- 60 tools, 120 tools, 32 outils, 20 tools, 200 tools, 300 tools, 64 tools
- Applications
- drilling, for the automobile industry, for the aeronautical industry, for the mold industry
- Other characteristics
- milling, high-speed, precision, with pallet changer, automated loading/unloading, tilting-head
- X travel
2,500 mm, 3,500 mm
(98 in, 138 in)- Y travel
Max.: 32,000 mm
(1,260 in)Min.: 2,200 mm
(87 in)- Z travel
Max.: 1,500 mm
(59 in)Min.: 1,200 mm
(47 in)- Rotational speed
6,000 rpm, 12,000 rpm, 15,000 rpm, 20,000 rpm
(37,699 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
30 kW, 37 kW, 40 kW
(40.79 hp, 50.31 hp, 54.38 hp)- Table rotation (C axis)
200 °
- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Weight
42,000 kg, 48,000 kg
(92,594.15 lb, 105,821.89 lb)- Overall length
6,920 mm, 7,680 mm
(272.4 in, 302.4 in)- Overall width
5,890 mm, 7,690 mm
(231.9 in, 302.8 in)- Overall height
5,040 mm
(198.4 in)
Description
is a high-speed working center with moving bridge gantry style and fixed table.
This machining center is the right combination to satisfy various processes for the following applications:
- MOLDS;
- AUTOMOTIVE;
- AEROSPACE;
- MECHANICAL APPLICATIONS;
- PRECISION PROTOTYPES;
- and other special applications.
SHARAV GVT allows to perform, with a single set-up part clamping, operations as roughing, semi-finishing, finishing and drilling all around the piece even in 5 axes continuous.
The working center is totally designed, built and assembled in Promac, using the most advanced 3D design software and FEM analysis.
Max working envelope on 5 axes with a tool length of 3.9 Inches.
Compact footprint with generous travels.
Working center for milling, tapping, drilling and deep drilling
Balanced distribution of dynamic and static masses
Kinematic movements placed at the top of the machine to ensure maximum reliability and precision of machining throughout the work area
