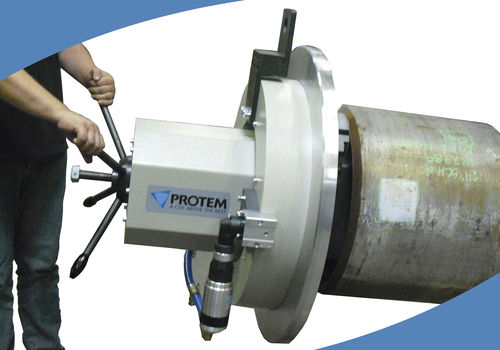

Pneumatic chamfering machine US450

portablefor pipe endsinside grip

PROTEM US450 for large diameters: 457 mm (18) ID up to 914 mm (36) OD The most powerful, versatile and reliable bevelling tool on the market! The air-powered PROTEM US450 beveller is a very robust and portable weld-end preparation machine. It performs repeatable, with no heat affected zone !, high quality weld-preps on most metal pipes including stainless steel, inconel, duplex, super duplex, alloys, P91 etc. It will bevel, face and counterbore individually or in a synchronised operation. The PROTEM US450 features a self-accepting torque and an integral dual pneumatic or hydraulic drive! Available with a dual MO20 pneumatic drive or a dual hydraulic drive (to be used with a 11KW hydraulic power pack) Machining capacity: 457 mm ID 914 mm OD (18 ID 36 OD) Clamping capacity: 457 mm ID 914 mm ID (18 ID 36 ID) Clamping: Stroke 24 mm (0.9) at the radius Cutting speed: 10 to 15 m/mn Feed stroke: 100 mm (3,9) PROTEM US450 für große Durchmesser: 457 mm (18) ID bis 914 mm (36) OD
