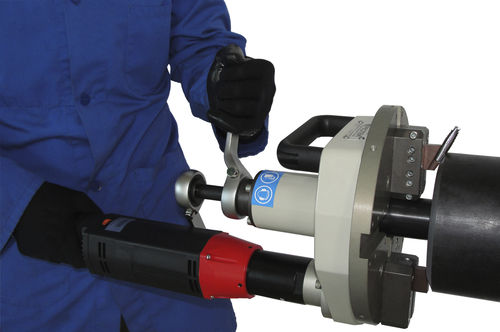

Pneumatic chamfering machine US40 Electric

portable

FLANGE FACING/SINGLE POINT MACHINING AVAILABLE ON REQUEST For diameters ranging from 70mm ID up to 400mm OD 2.7” – 15.7” • Short clamping mandrel for elbows • Fittings • Tees • Flanges • Quick clamping device for serial machining works • Automatic feed and automatic clamping - US40 CA • For almost all environments: Irradiated areas, extreme conditions, subsea … The US40 features a self-accepting torque system and an integral drive motor. For serial works and on request, the machine can be equipped with an automatic clamping and with an automatic feed device. The tool bits can be changed and adjusted very quickly. Carbide tool inserts can alternatively be used. Machining capacity: 43 mm ID – 219 mm OD 1.5“– 8“ Clamping capacity: 43 mm ID – 219 mm ID 1.5“–8“ Bevel forms: Facing, 30° and 37°30, 45° bevel, J-bevel, compound bevels, removal of weld joints from tube sheets, lengthening of tubes from tube sheets, others on request Clamping: Manual with ratchet Expansion: 16 mm / 0.6“ Feed stroke: 50 mm -1.9“with ratchet Cutting head gear drive: 25 rpm off-load speed, 16 rpm nominal speed (Approximate rotation speed according to air pressure and air flow) Machine is delivered with:  1 tool holder plate  2 tool bit holders  sets of clamping blades for above mentioned diameters  1 tool bit 90°, 1 tool bit 30°  key and screws  operating and maintenance manual
