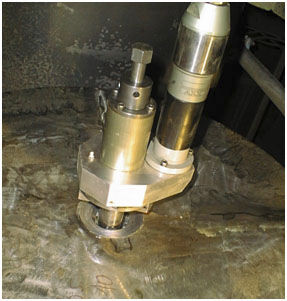

Pneumatic chamfering machine US40CH

precisionfor sheet metal

Inside clamping pipe bevelling machine type US40CH is specially designed for boilers works. The light weight and compact device is used in weld excavation to remove tubes welds from tube sheets. Its special designed is suitable for applications under restricted areas (e.g. boilers). The model is also compatible with bevel, counter bore tubes and pipes from 43 mm ID up to 120 mm OD. The standard tool plate accepts multiple tool bits for simultaneous machining operations. The robust US40CH features a self-accepting torque system and an integral drive motor and is highly capable to perform repeatable high quality weld preparations on almost all materials including alloys, stainless steel duplex, super duplex, inconel, etc. The series features 43 mm machining capacity, 20 mm ID, 43 mm OD Clamping capacity and 120 mm ID. It also includes bevel forms, face or multiple angle bevel, clamping manual with key, 15 mm expansion, pneumatic drive Power and 730 watt power.
