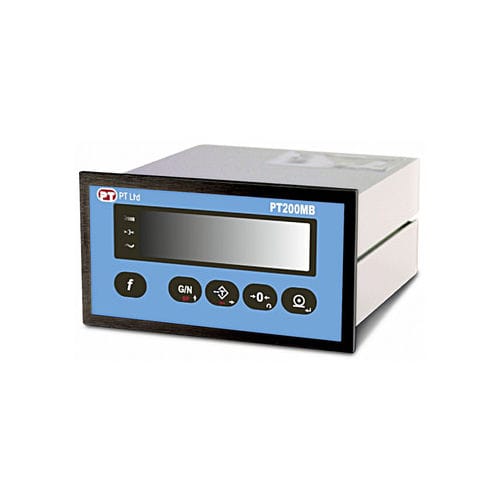

LED display weight indicator PT200MB series

panel-mountRS-485Modbus RTU

The PT200MB is a smart indicator for industrial weighing process applications offering powerful PLC integration facilities; standard serial ports such as RS-232C, RS-485, 2 programmable digital I/O. The PT200MB is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 10000 scale intervals in accordance with OIML R76. Powerful calibration options including vCal, Electronic calibration without test weights supporting fast easy setup and service. The PT200 features adaptive filtering for fast settling, high display resolution and a speed of up to 1600 conversions per second. It’s small size aluminum body is perfect for panel installations, providing large 13.5mm LED digits and requiring little space on control panels.. INTEGRATION • RS-232C • RS-485 • Modbus RTU • 2 digital I/O FEATURES • Up to 1600 measurements per second • 16,000,000 internal resolutions • Up to 100000 scale divisions • OIML R76 Approved • Up to 8x 350 Ω load cells • Programmable for tension - compression testing • Bright 13.5 mm LED display • Multiple units (g, kg, t, lb, klb, N, kN) • vCal Electronic calibration from PC • Linearity correction • Gravity compensation adjustment • Programmable via PC • RS-232C & RS-485 serial interfaces • 12 - 28 VDC supply
