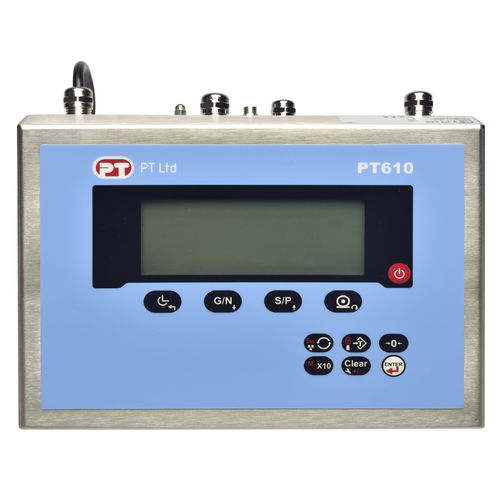

Digital indicator PT610 series

processwall-mountedpanel-mount

The PT610 is one of the series PT610, PT620, PT630 advanced indicator series, built robust for industrial, agricultural and hygienic area operation. The PT610 is an advanced, high quality general purpose weighing indicator for industry in a durable IP67 stainless steel housing. Ideal for platform, truck and hopper scales among other applications and is available with a wide range of options. The PT610 is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 10000 intervals in accordance with OIML R76. Weighing, and Dynamic weighing for animals and fluctuating loads are standard as is printing which is selectable from 4 languages. A wide range of options is available for integration by Fieldbus connectivity, desk, wall or panel mounting and digital I/O. Easy and practical operation via navigation keys with 6 large 22mm digits, 16 alphanumeric characters 8mm high and wide viewing angle, multi-colour backlit LCD display. The PT610 is powered by AC power with integral mains cable. A version is available for powering from 12-28VDC. GENERAL FEATURES • Wide angle LCD display with multi-coloured back light, 22mm main digits and 8mm alphanumeric auxiliary digits. • Desk, wall and panel mount versions • Up to 999999d display resolution • Up to 800 conversions per second • OIML approved to 10000d • Dedicated navigation keys provide easy operation • High sensitivity (to 0.05 μV/d) • Linearity correction • Gravity Adjustment • Keypad locking • Mains and 12-28V DC versions • Dynamic weighing • Up to 8x 350Ω load cells • 2x RS-232C 1x USB and 1x RS485 data port standard
