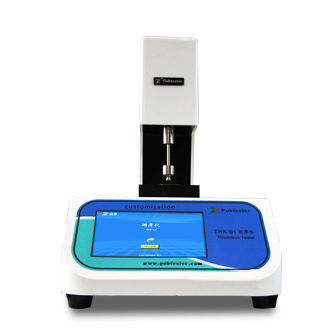

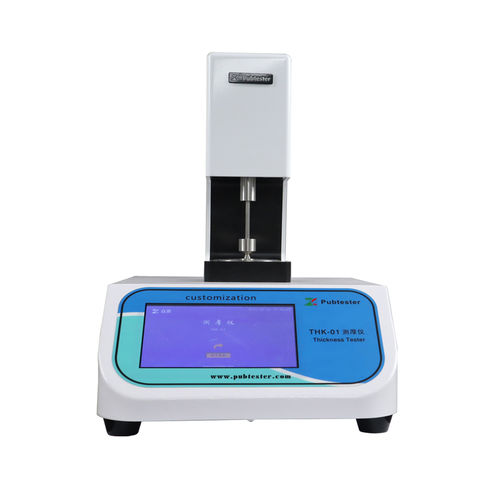

Film thickness gauge THK-01

paperfor paperfor sheet materials

THK-01 Thickness Tester, basing on mechanical contacting method, is applicable to thickness measurements of plastic films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, solid insulation materials, aluminum foils, silicon wafers and many other materials. Product Features -Standard contact area and test pressure. Customization is available for non-standard testing requirements -Precision thickness measurement sensor, high precision and good reproducibility -Multiple test ranges can be selected -Automatic lifting presser foot facilitates to minimize system errors caused by human factors during the test -Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience -Manual or automatic operating mode for convenient test -Standard, modularized and systematic designs can meet personalized requirements of the users -7 inch HD colorful LCD touch screen, display test data in real time -Built-in micro-printer can print the historical test data in real time -Equipped with standard RS232 port which is convenient to PC connection and data transmission -Standard thickness measurement tools can be used for calibration and inspection -The maximum, minimum and average values as well as standard deviation and other statistical data can be displayed in real time, which is convenient for the data analysis -Provides professional customization services to meet the individual needs of users in fixtures, software, etc.
