Compression test machine TST-6S

tensileforcetensile strength

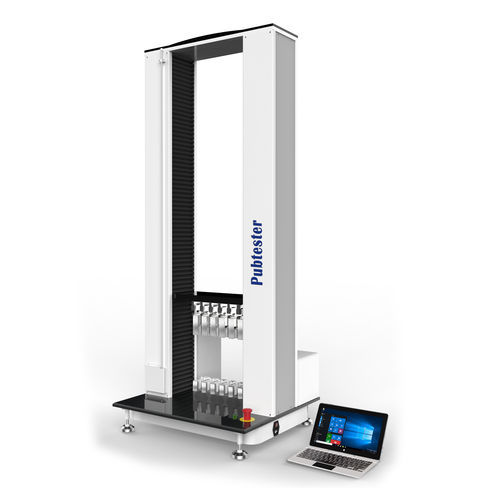

TST-6S Auto 6-station Tensile Tester TST-6S Auto 6-station Tensile Tester is applicable to determination of tensile properties, peel strength, tearing strength, heat seal strength and bonding strength of plastic films, composite materials, adhesives, adhesive tapes, medical patches, protective films and pressure sensitive paper, etc. Product Features High-end configuration High-precision imported ball nut screw with a new transmission structure of three-guide column guide bushing makes the system run more smoothly. 0.5% of full scale effectively ensures accuracy and repeatability of test results. Equipped with advanced displacement control system, displacement accuracy can reach 0.1mm. With Panasonic’s advanced servo drive system, which can achieve infinitely variable speed to meet different test requirements. Wide range of load cells for a variety of force testing requirements. Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation. Equipped with standard RS232 port, which is convenient to PC connection and data transmission. A variety of grips for choose, which can meet the test requirements of more than 10,000 materials. UL certified Schneider emergency stop button to maximize the safety of man and machine during the test. Efficiency Six-station new design, saving testing time and greatly improving testing efficiency Portable hand-held control box, greatly increasing the convenience of operation. Pneumatic clamping system simplifies the specimen clamping process and improves the testing efficiency.
