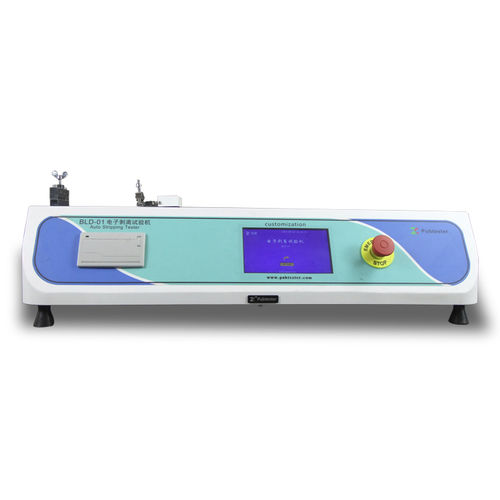

Tensile test machine BLD-01

peelforceautomatic

BLD-01 Auto Stripping Tester BLD-01 Auto Stripping Tester can be used for peeling, tensile strength and heat sealing strength of packaging, adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandage, protective films, release paper, laminated films, leatheroid, woven bags, films, paper, electronic carrier tapes. Equipped a small range sensor, it can also be used for release force testing with small force values. Technical Features Specialized Technology 0.5% of full scale high precision load cell effectively ensures accuracy and repeatability of test results. Advanced displacement control system, automatic displacement reading, which ensure the accuracy up to 0.1mm. High-performance drive system can achieve 0.05-500mm/min infinitely variable speed to meet different testing needs. Wide range of load cells available. 7-inch color touch screen with intelligent data processing functions provides a comfortable and smooth operating experience. Built-in micro printer for automatic printing. Featured Functions Built-in independent test items such as tension and compression, peeling, and heat sealing tests, which conforms to various international test standards. Display the maximum value, minimum value, and average value for each test, and automatically record the data. With group statistical function, multiple test results can be printed at one time. Equipped with standard RS232 interface, which is convenient to PC connection and data transmission. Provides professional customization services to meet various needs in fixtures, software, etc.
