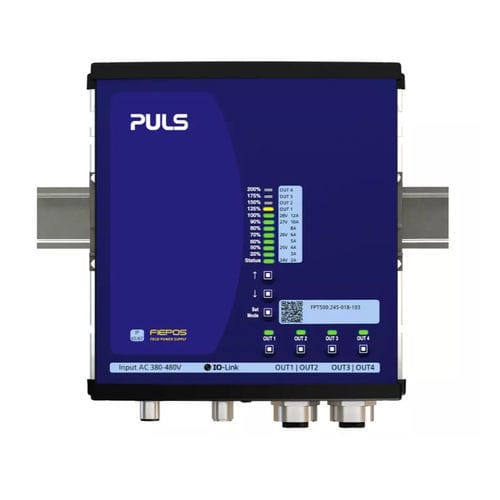

DIN rail power supply FPT500.245-018-103

AC/DCmultiple-outputadjustable

Power factor - 0.95 Input inrush current limitation - active Input inrush current - 1.9 A / 1.8 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 1000 W (up to 5s) Derating - 10 W/°C for +45 to +70 °C 33 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 100 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: M12-S | Output: 7/8" 4pin Efficiency, typ. - 95.6 % Power losses, typ. - 23 W MTBF SN 29500 @ 40 °C (h) - 233000 h Features 1000 Wpeak 5 s Outputs for actors and sensors separately protected 95.6 % full load and excellent partial load efficiencies Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power up to +45 °C IO-Link
