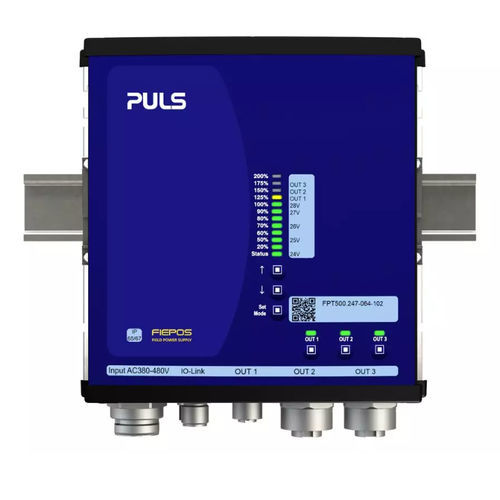

DIN rail power supply FPT500.247-064-102

AC/DCdual-outputadjustable

Power factor - 0.95 Input inrush current limitation - active Input inrush current - 1.9 A / 1.8 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 1000 W (up to 5s) Derating - 10 W/°C for +45 to +70 °C 33 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 100 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Housing material - Metal Operating temp. range - -25 °C to 70 °C Connection method - Screw terminals Efficiency, typ. - 95.6 % Power losses, typ. - 23 W MTBF SN 29500 @ 40 °C (h) - 233000 h Features 1000 Wpeak 5 s 1 NEC Class II output Outputs for actors and sensors shares one channel 95.6 % full load and excellent partial load efficiencies Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power up to +45 °C IO-Link Input: 7/8”d / Output: 1x M12-A; 2x 7/8” - 5pin
