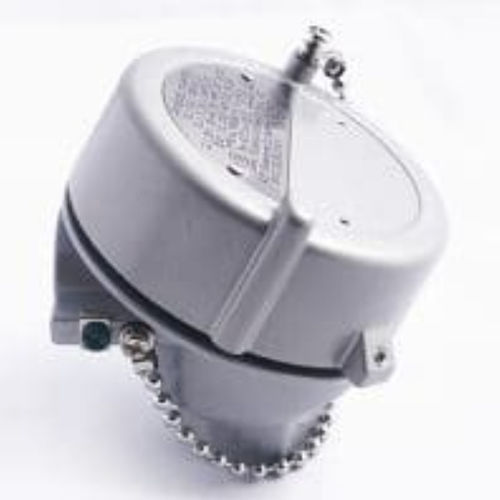

Thermocouple connection head 1010PAEM Seriesaluminumexplosion-proofIP66
Add to favorites
Compare this product
Characteristics
- Options
- aluminum, thermocouple
- Protection level
- IP68, explosion-proof, IP66, NEMA 4X
Description
Aluminum explosion proof Thermocouple head provided with FM, CSA, ATEX, IECEx certifications ,NEMA 4X and IP66/68 rating. The connection head accommodates a terminal block or transmitter 2″ (50mm) in diameter
WIDE SELECTION OF CONDUIT SIZES
OPTION FOR CUSTOMIZED SS HALF MOON NAMEPLATE
Material of Construction: Die-Cast Aluminum
Certification: FM/CSA/ATEX/IECEx
Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5
Surface Finishing: Painted Grey or ( custom color*)
“O” Ring: EPDM
Weight: 0.5 KG (1.1 LBS)
Accessories: Terminal Block (Ceramic / Bakelite)
