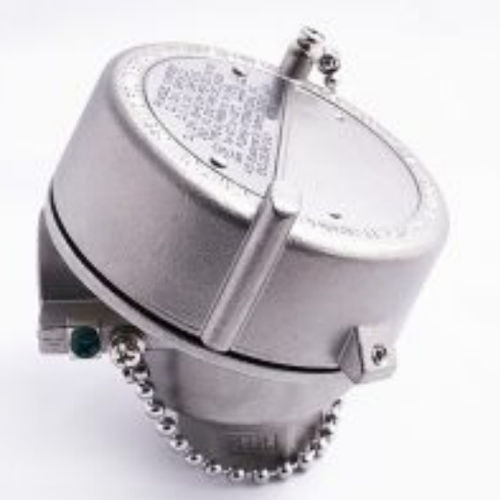

Thermocouple connection head 1014PSEH, 1016PSEH Seriesstainless steelIP68explosion-proof
Add to favorites
Compare this product
Characteristics
- Options
- thermocouple, stainless steel
- Protection level
- IP68, explosion-proof
Description
Stainless Steel 304/316, explosion proof Thermocouple head provided with FM/CSA certification NEMA 4X and IP68 rating . The connection head accommodates a terminal block or transmitter 2″ (50mm) in diameter.
• EXPLOSION-PROOF CERTIFIED
• NEMA 4X AND IP66/68 CERTIFIED
• WIDE SELECTION OF CONDUIT SIZES
• OPTION FOR A CUSTOMIZED HALF MOON SS NAMEPLATE
• Material of Construction: S.S.304/S.S.316
• Certification: FM / CSA
• Connections: ½”NPT,3/4”NPT,M20X1.5 P,M24 x 1.5
• Surface Finishing: S.S.
• “O” Ring: EPDM
• Weight: 1.22 KG (2.7 LBS)
• Accessories: Terminal Block (Ceramic / Bakelite)
Catalogs
1014PSEH /1016PSEH
2 Pages
