Aluminum connection head 1110PWT seriesthermocoupleexplosion-proofIP66
Add to favorites
Compare this product
Characteristics
- Options
- aluminum, thermocouple
- Protection level
- explosion-proof, IP66
Description

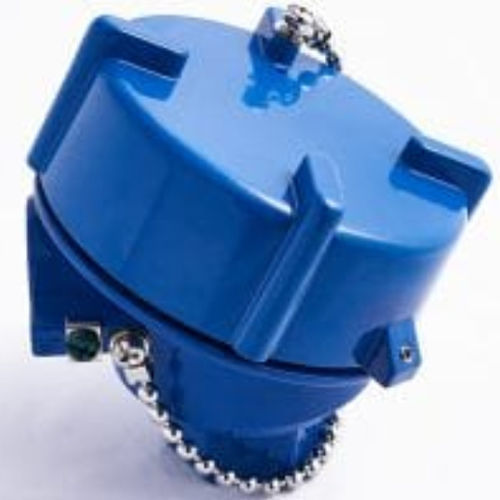

Aluminum explosion proof Thermocouple head, Epoxy coated blue provided with ATEX certification, IP66 rating. The connection head accommodates an elliptical block or transmitter 2″ (50mm) in diameter.
• WIDE SELECTION OF CONDUIT SIZES
• OPTION FOR CUSTOMIZED SS HALF MOON NAME PLATE * for 1010PWET
• Material of Construction:Die-Cast Aluminum or
• Certification: ATEX
• Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5
• Surface Finishing: Epoxy Blue (custom color*)
• “O” Ring: VITON
• Weight: 0.5 KG (1.1 LBS)
• Accessories: Terminal Block (Ceramic / Bakelite)
