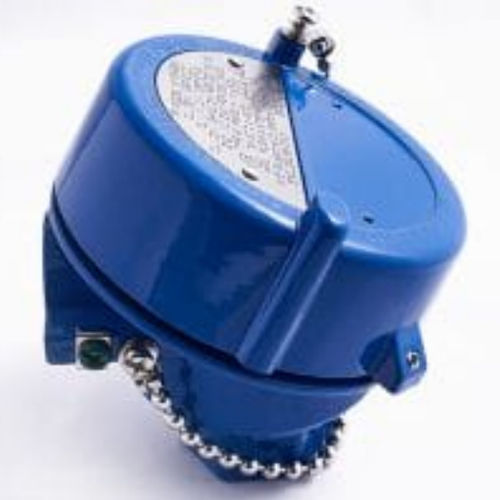

Thermocouple connection head 1010PWEM aluminumIP68explosion-proof
Add to favorites
Compare this product
Characteristics
- Options
- aluminum, thermocouple
- Protection level
- IP68, explosion-proof, IP66
Description
Aluminum explosion proof Thermocouple head Epoxy coated blue provided with FM, CSA, ATEX, IECEx certifications, NEMA 4X and IP68 rating. The connection head accommodates a terminal block or transmitter 2″ (50mm) in diameter.
• EXPLOSION-PROOF CERTIFIED
• NEMA 4X AND IP66/68 CERTIFIED
• WIDE SELECTION OF CONDUIT SIZES
• OPTION FOR A CUSTOMIZED SS NAMEPLATE
• Material of Construction: Die-Cast Aluminum
• Certification: FM / CSA / ATEX / IECEx
• Connections: ½”NPT,3/4”NPT,1/2”,M20x1.5P ,M24 x 1.5
• Surface Finishing: Epoxy Blue or Custom Color*
• “O” Ring: EPDM
• Weight: 0.5 KG (1.1 LBS)
• Accessories: Terminal Block (Ceramic / Bakelite)
Catalogs
1010PWEM
2 Pages
