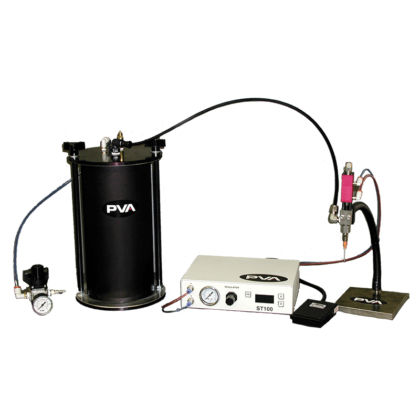

Dispensing system for the electronics industry FC100-1LT-1-S

manual

Bottle of material is placed in pressure pot Air pressure is applied from controller to valve Air pressure is applied to feed material to valve Flexible stand is adjusted for desired height Fluid pressure is adjusted to control flow Stroke adjuster on the valve can be adjusted for flow rate Shot timer is set for dispense mode (timed or manual) PVA also offers optional accessories for this system: FC1-SP- Valve spare parts kit B62-0767-SP- System spare parts kit Dispensing can extend across numerous industries and applications that require dosing in an accurate and controlled manner. PVA's award winning valves and pumps are available to dispense a broad spectrum of chemistries to meet the requirements of your most demanding applications.
