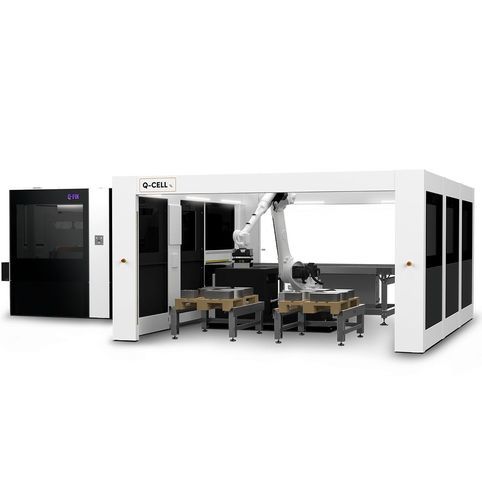

Robotic finishing cell Q-Cell Robot

unloadingloadingfor machine tools

The ultimate automation solution for your finishing processUpgrade your finishing process and produce 24/7 with the Q-Cell Robot. The most efficient solution for fully automatic loading and/or unloading of sheet metal parts in combination with a 1200 or 1500 mm wide Q-Fin finishing machine.3D vision camera for product recognitionUndefined product pickingGripper with vacuum or magnetic fixationConnected input/output table for batch productionRecognition of length directionERP package integration via APIAGV integration possible with Qonnect+Discover the Q-Cell Robot by Q-Fin, the ultimate automation solution for efficiently placing undefined products on the input table of the Q-Fin finishing machine. Thanks to advanced 3D vision technology, the Q-Cell’s Robot camera accurately scans and identifies the products, allowing the robot to effortlessly position them on the input table. This robot even offers the possibility of placing products in specific orientations, enabling you to achieve a perfect line finish in the desired direction.Once the input table is full, the Robot Cell automatically communicates with the Q-Fin finishing machine, resulting in the products being processed by the Q-Fin finishing machine. This leads to seamless batch production of the products. Furthermore, it provides the flexibility to install the Q-Cell Robot on the output side of the Q-Fin finishing machine, allowing for fully automated unloading of undefined products. Discover the efficiency and precision of the Q-Cell Robot and optimize your production process.Robot Cell 2MRobot Cell 3MCartesian CellAvailable asRC1200RC1200, RC1500CC1200, CC1500Maximum workpiece weight12 kg70 kg50 kgProduct fixationVacuum or magnet systemVacuum or magnet systemVacuum or magnet systemMinimum product thickness1 mm1 mm1 mmMaximum product thickness10 mm25 mm25 mmMinimum product dimensions120 x 120 mm120 x 120 mm120 x 120 mmMaximum product dimensions300 x 400 mm1200 x 800 mm1200 x 800 mmMachine power supply400 V | 50 Hz | 10 A400 V | 50 Hz | 16 A400 V | 50 Hz | 32 APallet size1200 x 800 mm1200 x 800 mm1200 x 800 mmSurface dimensions (L x W)2000 x 1200 mm3000 x 1200/1500 mm3000 x 1200/1500 mmDimensions (L x W x H)3000 x 3500 x 2200 mm5000 x 5000 x 2200 mm4700 x 4400 x 4300 mmSuitable forF1200, M1200 and SER1200F1200, F1500, M1200, M1500, SER1200 and SER1500F1200, F1500, M1200, M1500, SER1200 and SER15003D vision camera for product recognitionUndefined product pickingGripper with vacuum or magnetic fixationConnected input/output table for batch productionRecognition of length directionERP package integration via APIAGV integration possible with Qonnect+
